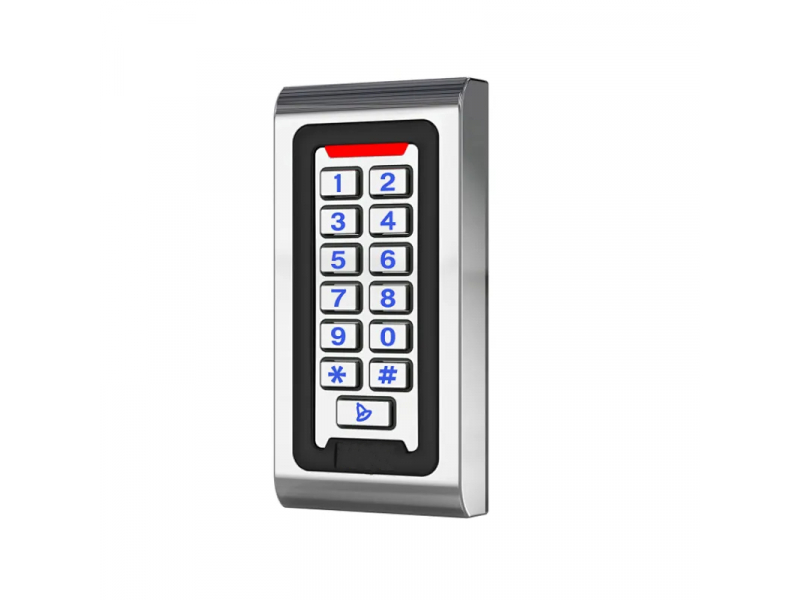

1.Features

• Waterproof, conforms to IP68
• Strong Zinc Alloy Electroplated anti-vandal case
• Capacity: 10,000 cards/codes
• Multiple accesses, card/ code/ Tuya APP
• Can be used as a stand alone keypad
• Backlight keys
• Wiegand 26 input for connection to external reader
• Wiegand 26 output for connection to a controller
• Adjustable Door Output time
• Very low power consumption (30mA)
• With data backup function
• Can set relay toggle mode, pure reader mode(WG26/34/37/58 output), standalone access control mode
• Easy to install and program
• Built in buzzer
• Red, Yellow and Green LEDS display the working status

2. Specifications

Operating Voltage	DC 12V±10%
User Capacity	2000
Card Reading Distance	3-6 cm
Active Current	＜60mA
Idle Current	25±5 mA
Lock Output Load	Max 3A
Alarm Output Load	Max 20A
